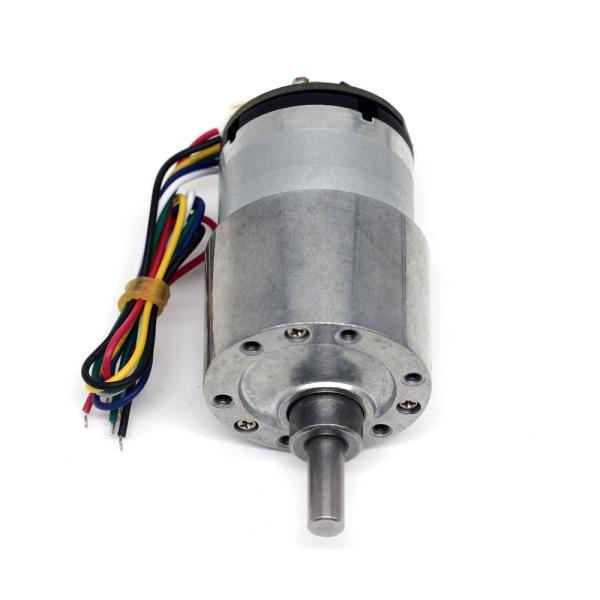

12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear

Brand Name : ASLONG

Model Number : JGB37-520B

Certification : Rosh,CE

Place of Origin : China

MOQ : 2 Pieces

Price : Negotiation

Payment Terms : L/C, T/T, MoneyGram

Supply Ability : 10000pcs/week

Delivery Time : 3-7working days

Packaging Details : on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32

Usage : For DIY Smart Equipment

Commutation : Brushed

Speed(rpm) : 7-1600rpm

Type : Gear Motor with Encoder kits

Efficiency : IE 1

Construction : Permanent Magnet

Material : Stainless Steel

Voltage : 12V

Contact Now

600rpm 24V Small DC Gear Motors With Hall Encoder

12V 24V DC Gear Motor With Hall Encoder For DIY Smart Equipment

12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear

JGB37-520 Micro Dc Gear Motor Description:

Now ,you can get our this 37mm dc gear motor with magnetic encoder(JGB37-520B),and other related 37mm gearbox motors as following:

12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear 12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear 12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear 12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear
JGB37-520B JGB37-3530 JGB37-3157 JGB37-3625
12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear 12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear 12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear 12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear
JGB37-3650 JGB37-545 JGB37-550 ZGA37-3530

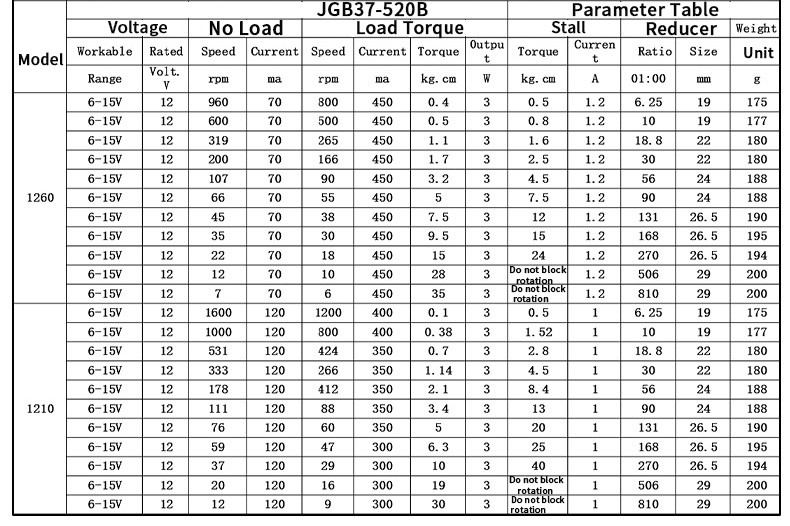

  • Specification:

  • Voltage: DC6V

  • No-Load Speed: 1000rpm, 600rpm, 300rpm, 200rpm, 100rpm, 70rpm, 45rpm, 35rpm,20rpm,12rpm,7rpm

  • Voltage: DC12V

  • No-Load Speed: 1590rpm, 1000rpm, 530rpm, 333rpm, 178rpm, 110rpm, 76rpm, 60rpm,37rpm,20rpm,12rpm

  • Error: ±5%

  • Output Shaft Diameter: 6mm D-type

  • Wirings:

  • Red Wire - positive power supply of motor(+)(change positive and negative of motor the rotation will change)

  • White Wire - negative power supply of motor(-)(change positive and negative of motor the rotation will change))

  • Yellow Wire - signal feedback (motor one turn has 11 signals)

  • Green Wire - signal feedback (motor one turn has 11 signals)

  • Blue Wire - positive of encoder power supply(+)(3.3-5V),cannot be wrong

  • Black Wire - negative of encoder power supply(-)(3.3-5V),cannot be wrong

  • Output Shaft Length: 14mm

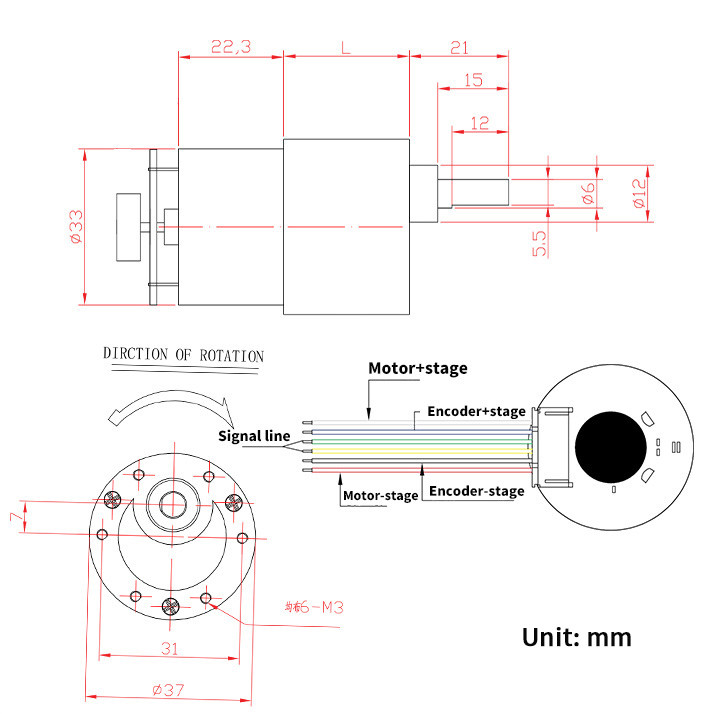

  • Gearbox Size Detal, please see the table

Wiring method:

​12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear

12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear

  • 12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear
    Noted:
    1. Gearbox Shaft can be made with double shaft, shaft dimension can be customized.
    2. This gearbox can matched with other DC Motor.
    12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear

    * Shaft length 15.5mm D length 12mm
    * Shaft diameter 6mm D-shaped shaft

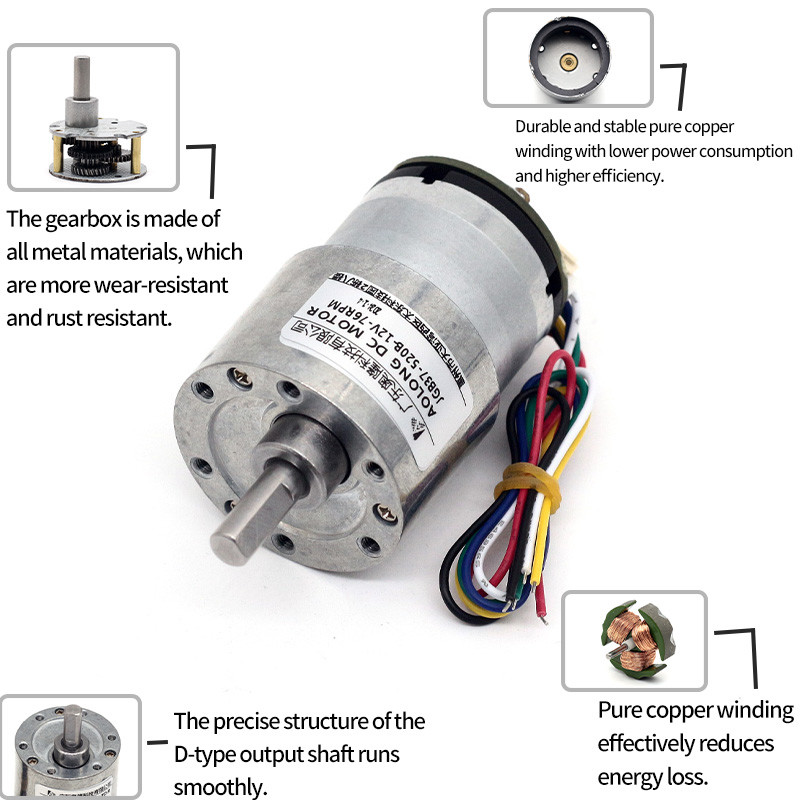

    * High-quality materials are high-quality, strong, safe, and have a long service life.
    12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear
    12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear
    12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear
    12v Dc Motor Encoder JGB37-520B 37mm Brush Motor 12v Volt Brushed Gear
